Introduction

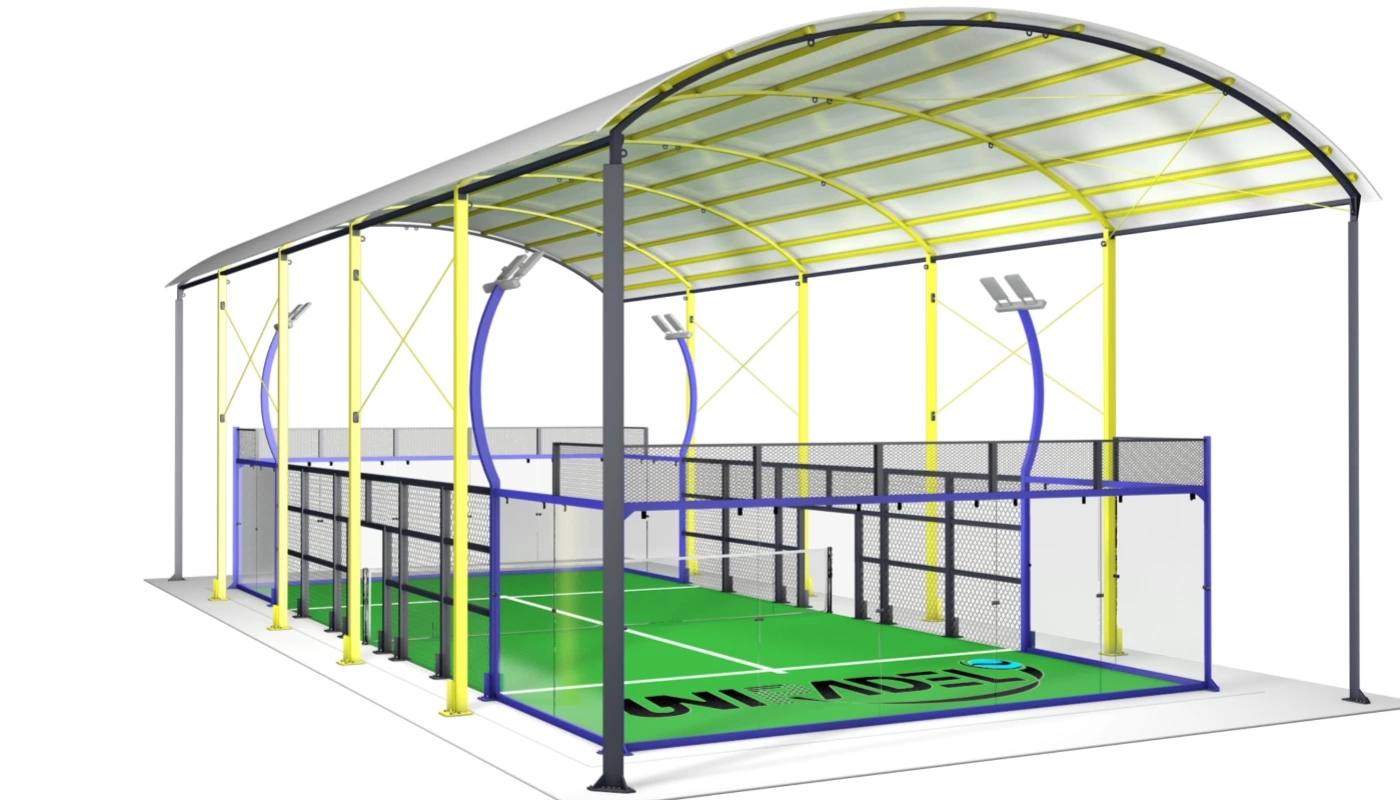

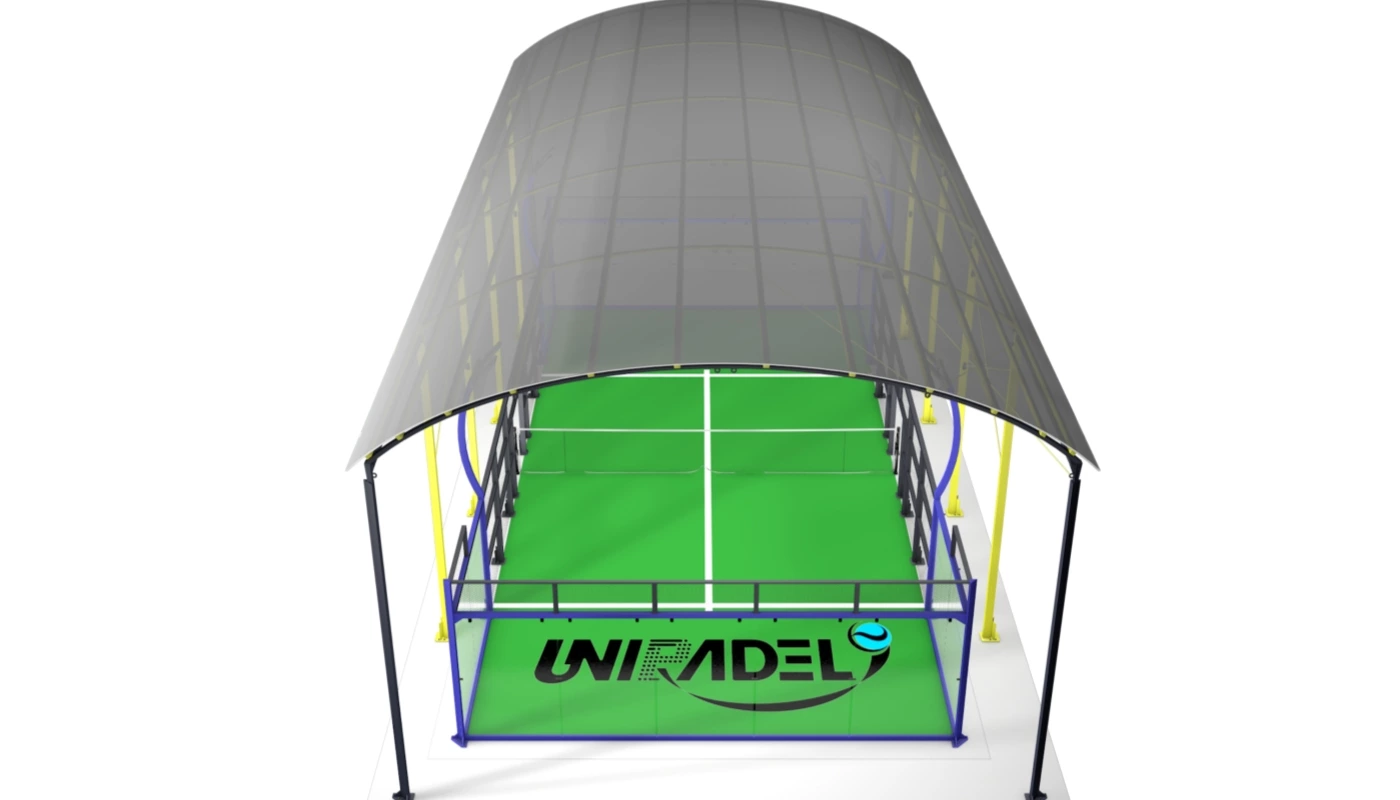

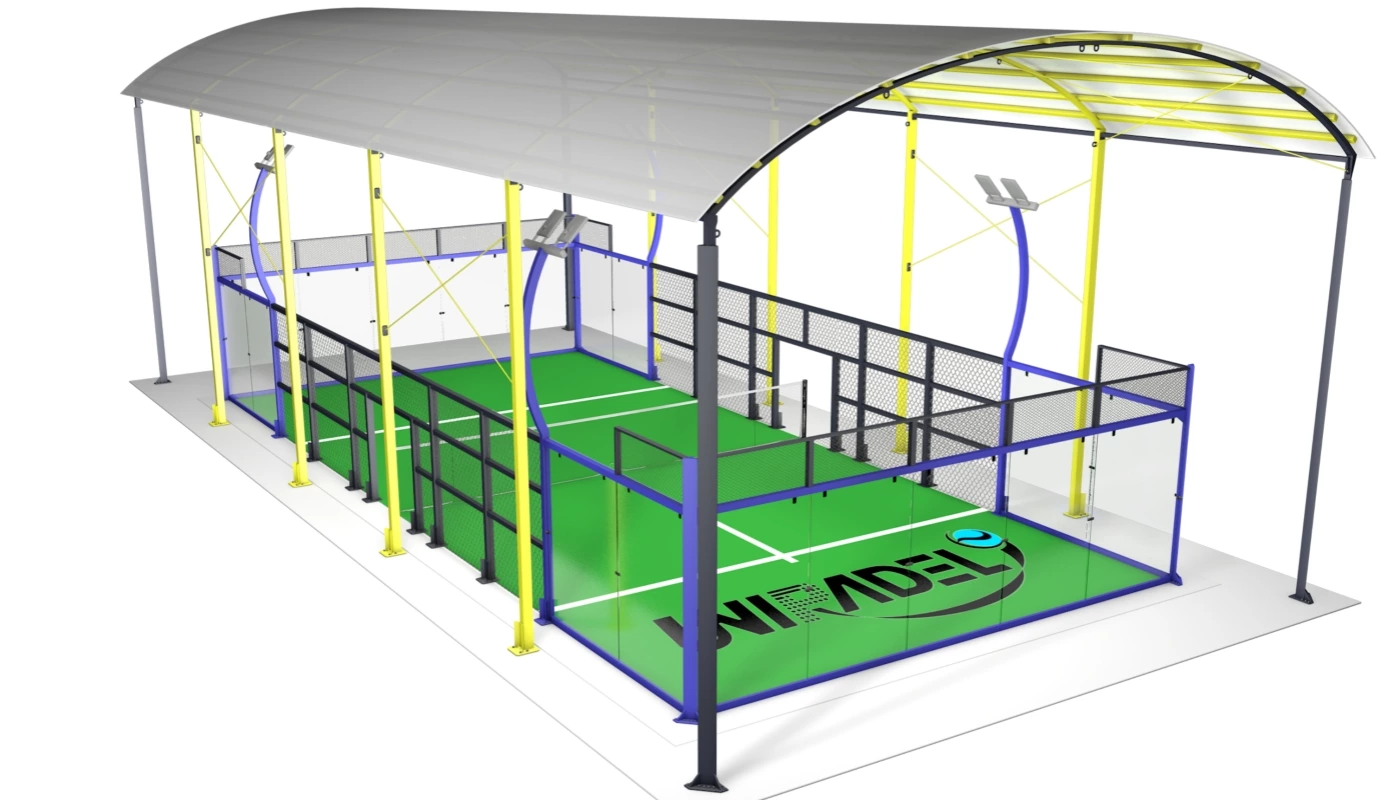

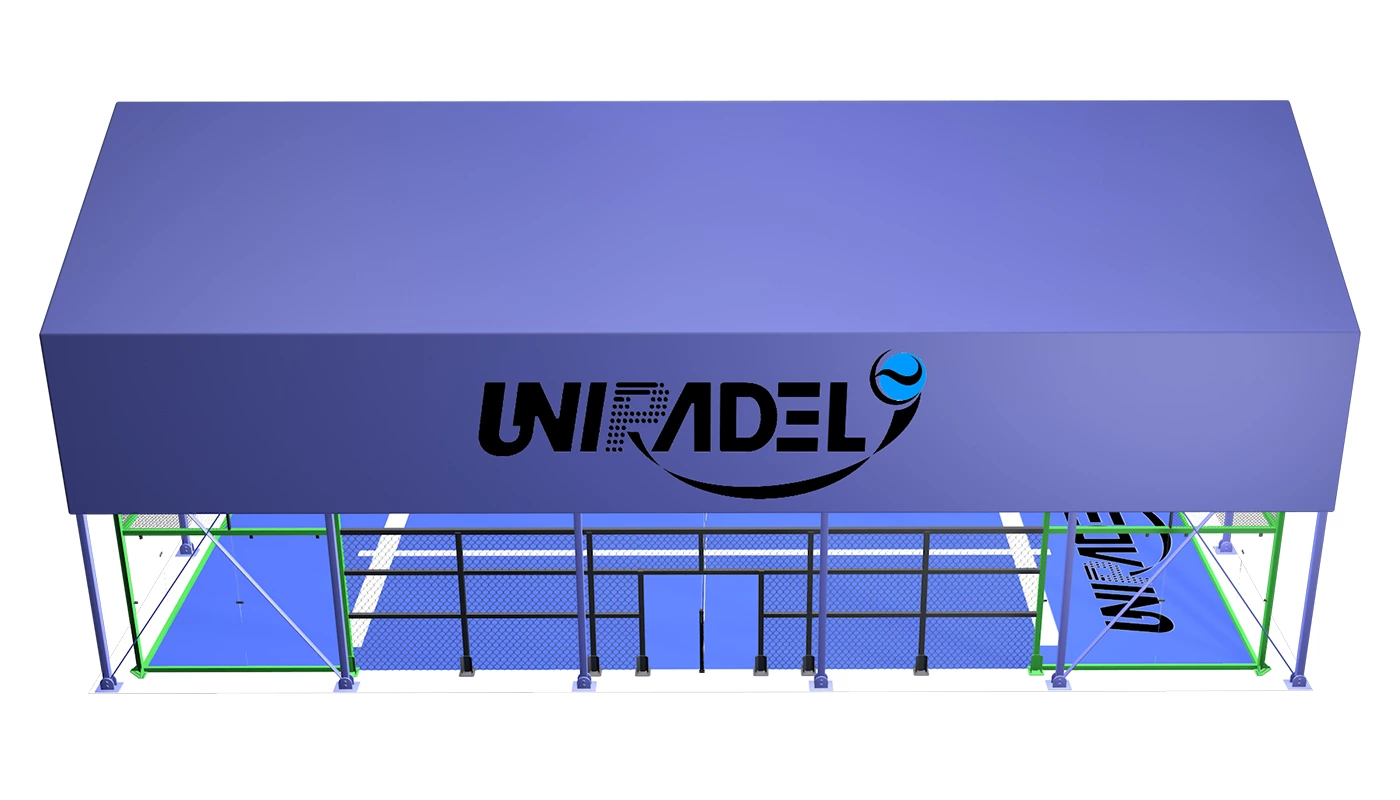

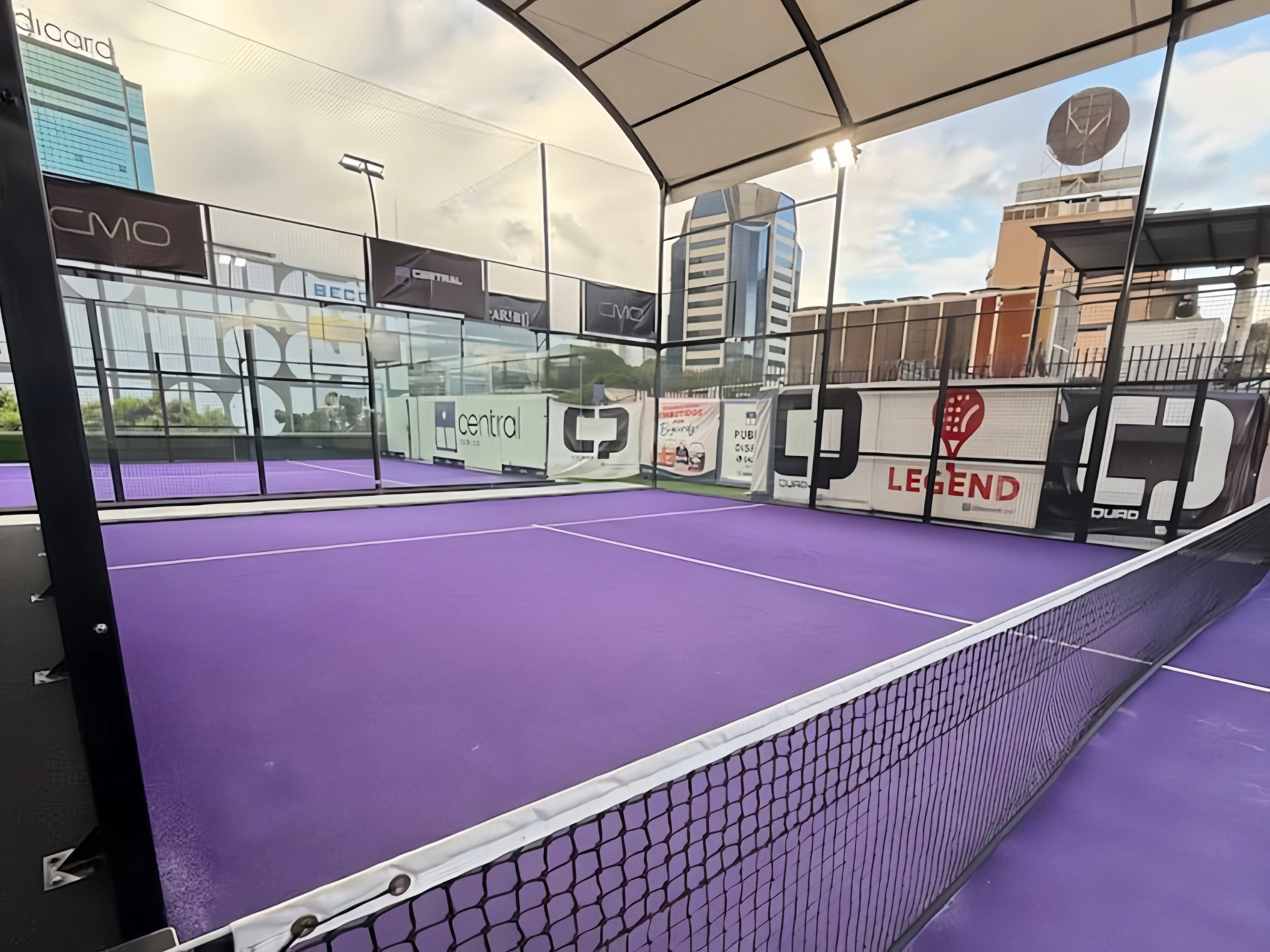

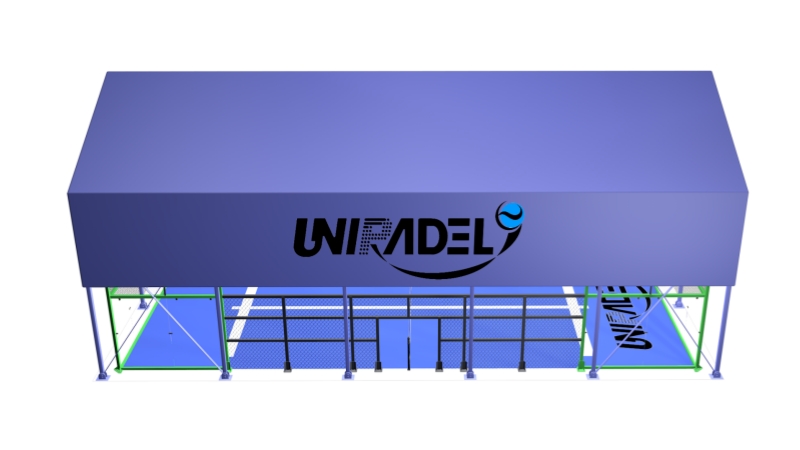

The Panoramic padel court with roof combines modern design, high-quality materials and advanced technology, making it an ideal choice for sports enthusiasts outdoors. The roof has a variety of designs, and you can choose a fully enclosed or semi-enclosed structure to ensure full use of natural light. Its sturdy structure can withstand various adverse weather conditions, including rain, snow and strong winds, so that the court can be used normally in any climate. This design not only improves the convenience of exercise, but also effectively reduces the glare problem caused by direct sunlight, thereby improving the comfort of competition and training, and providing a good experience for athletes and spectators.

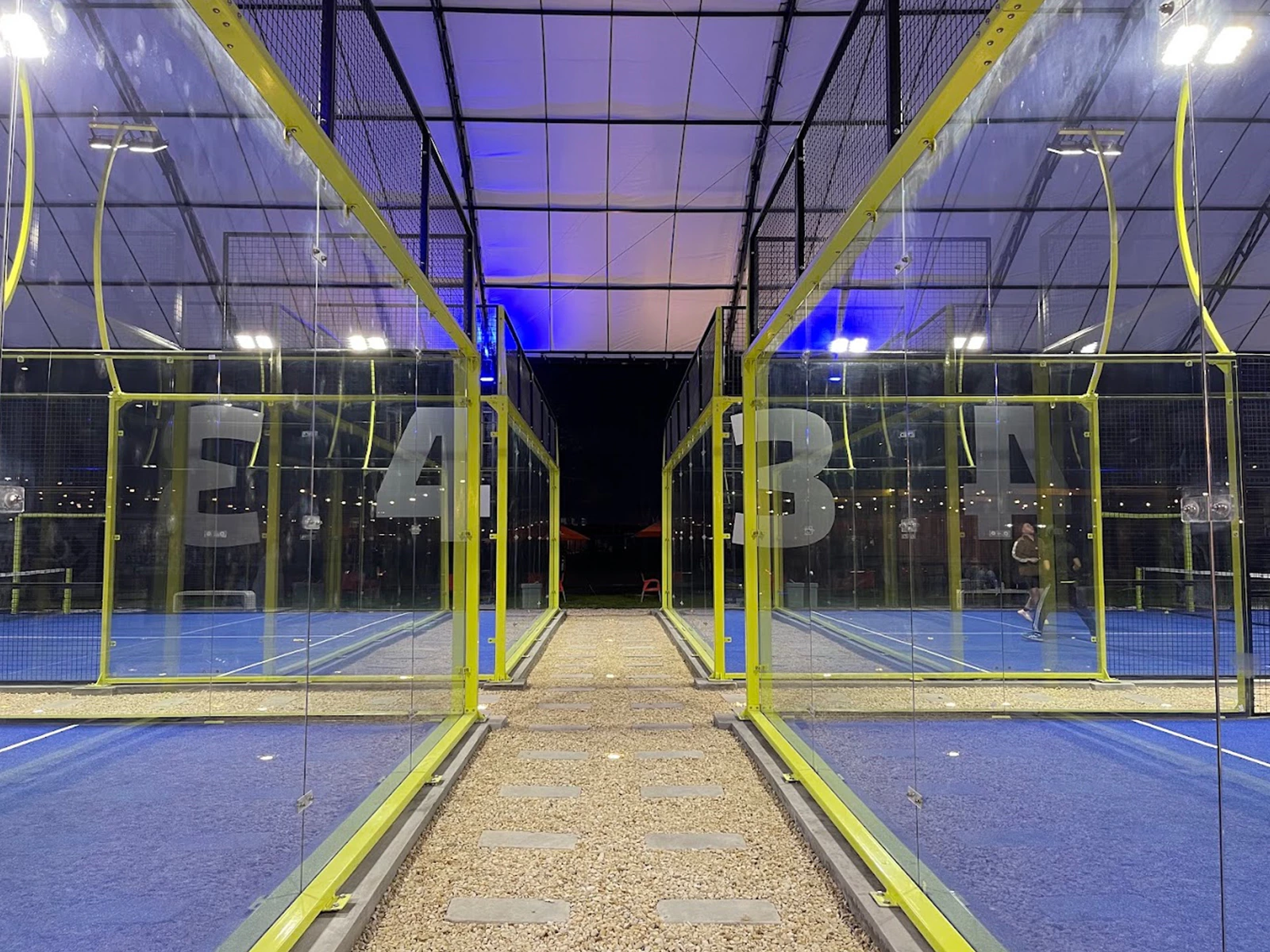

In addition, the glass enclosure of the court is combined with an efficient lighting system to further enhance the viewing and comfort of the game. The glass enclosure not only provides a clear view, but also allows the audience to fully feel the passion and atmosphere of the game. At the same time, the lighting system ensures that the court remains visible at night or in low light conditions. This panoramic padel court with roof design is suitable for community facilities and professional arenas, meeting diverse needs and providing excellent results. Whether it is for leisure and entertainment or competitive competition, this court creates a high-quality environment for athletes and spectators.
Gallery
8-10 Year Warranty
The Safest Padel Courts
Excellent Materials
Structure Technical Details
Padel Court Dimensions
The standard panoramic padel court with roof size is 10 meters wide and 20 meters long, with a rectangular layout. This compact size provides an efficient and tight space for competition, suitable for doubles competitions
Galvanized Steel Mesh
Material: Hot Galvanized Steel Grade: Q235B
Frame column size:50mm 30mm2mm(c)
Mesh hole size: 50mm"50mm"4mm
Mesh size : 1x2m/Piece
Surface treatment:Powder coating
Galvanized Steel Post
Material: Hot Galvanized Steel Grade: Q235B
Corner post:80mm"80mm"3mm, height: 3M
Column: 80mm"60mm"3mm, height: 3M
Cross bar: 80mm"80mm"3mm, length: 4m/5m
Light Arm size:50*50*2.5mm, H:3M(c shape )
Center post: 80mm"80mm"3mm Height:980mm
Padel Court Tempered Glass
Thickness: 12mm
Light Transmission(TL %): 87%
Outdoor Reflection (RLe%):7.9%
Glass size: 1990mm*3000mm */pieces
Package: Wood Carton
Finish: Hole drilled"
Padel Turf
Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model
Pile height: 12mm
Yarn Dtex: 9500 Dtex
Backing: Latex PP+Net+Sbrwith white marking line together
Warranty: 8 years for outdoors
Color:Blue,Light Blue、Green、Purple 、Pink or customized
Certificate:CE, SGS, ROHS, REACH"

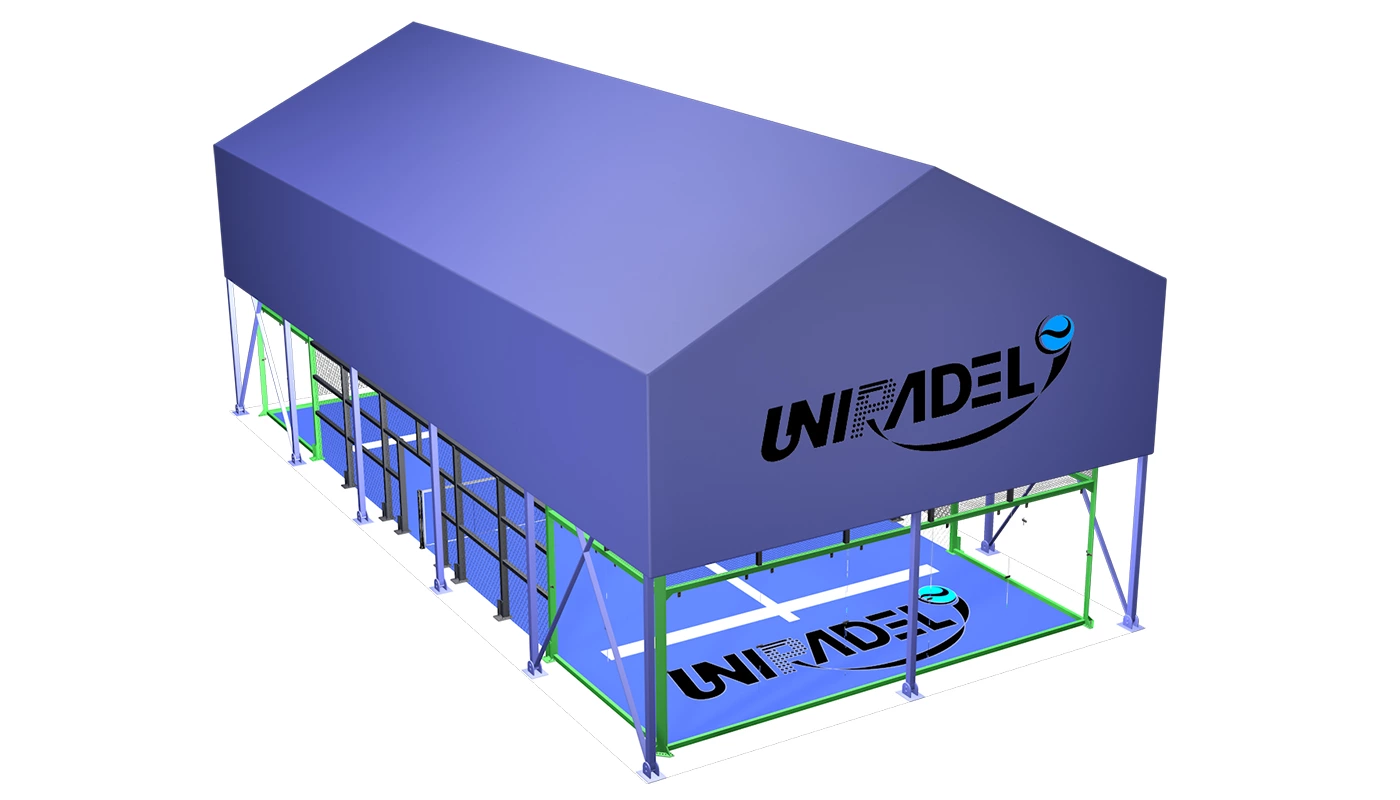

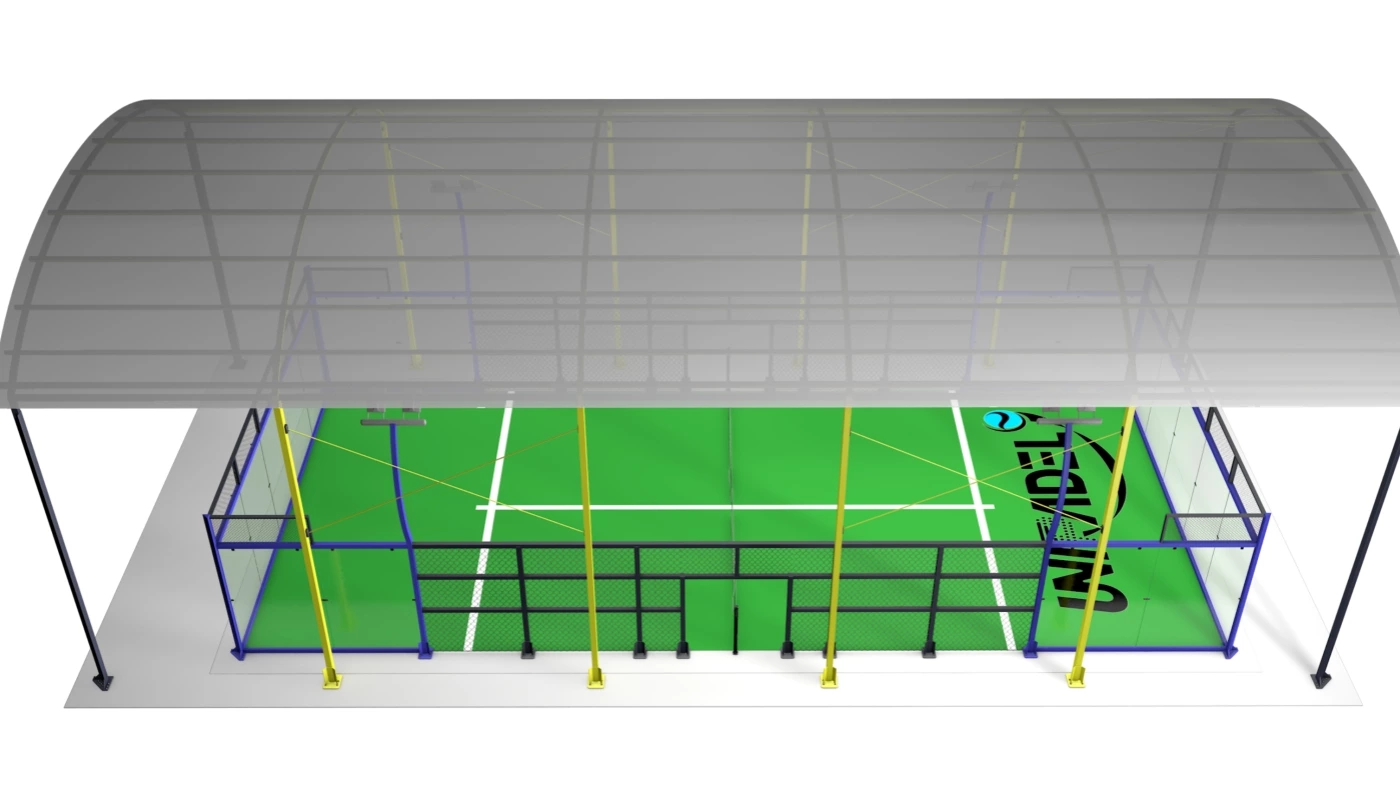

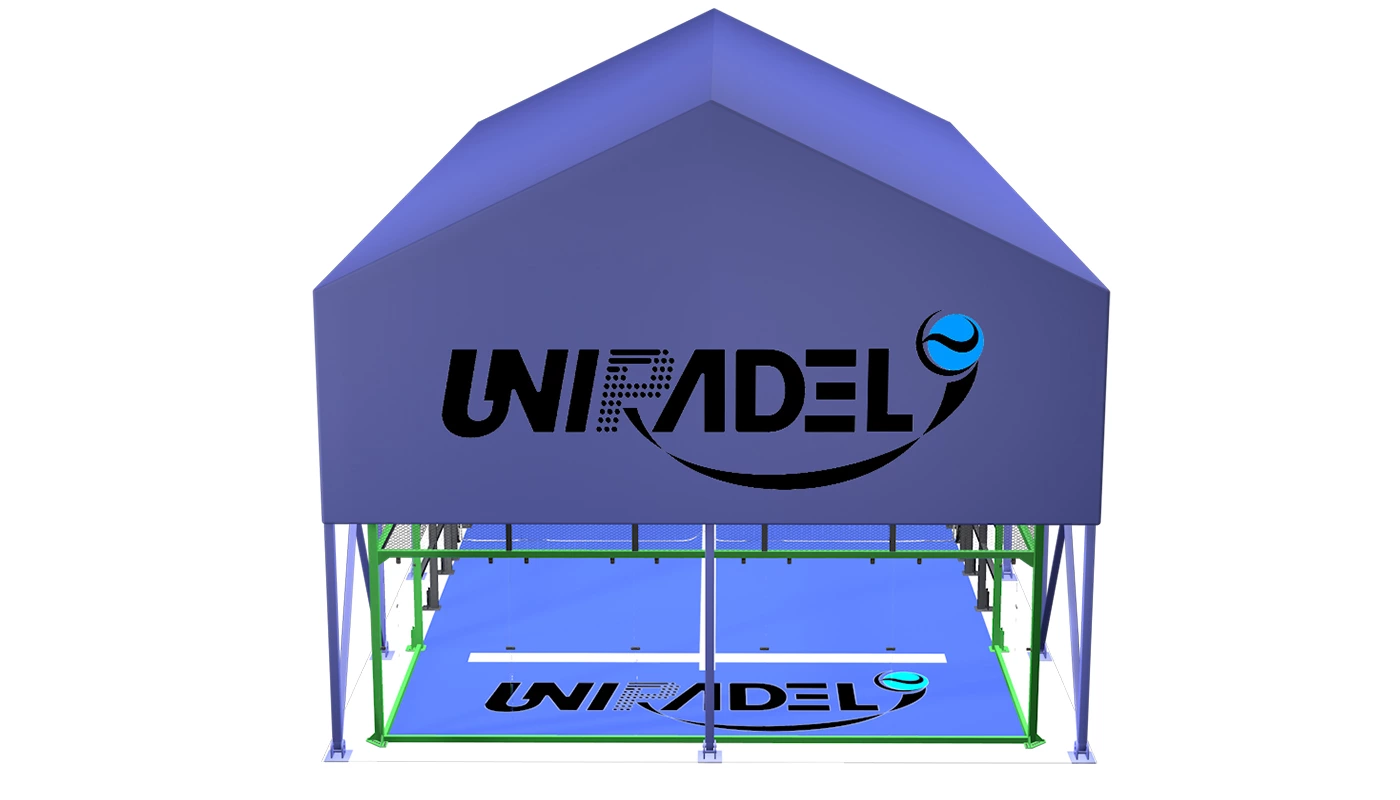

Padel Court Roof/Tent
The arched main beam is made of aluminum alloy profiles150*80*4.0mm thick,the crossbar is made ofaluminum profiles 50*50*2.$mm,the column is made ofaluminum profiles150*80*4.0mm thick,and the tarpaulin is made of PVC material 0.6mm thickSide height 6m, center height 8m.
Frame Structure: Aluminum alloy profiles
Main Profile Size: 204*120*4mm
Base size: 450*450mm
Cover: 850g/m*PVC
Temperature resistance (C):-30~70
Wind resistance: wind strength <10
Sidewall Height :3M fixed
Eave Height: 6M , Ridge Height:8M

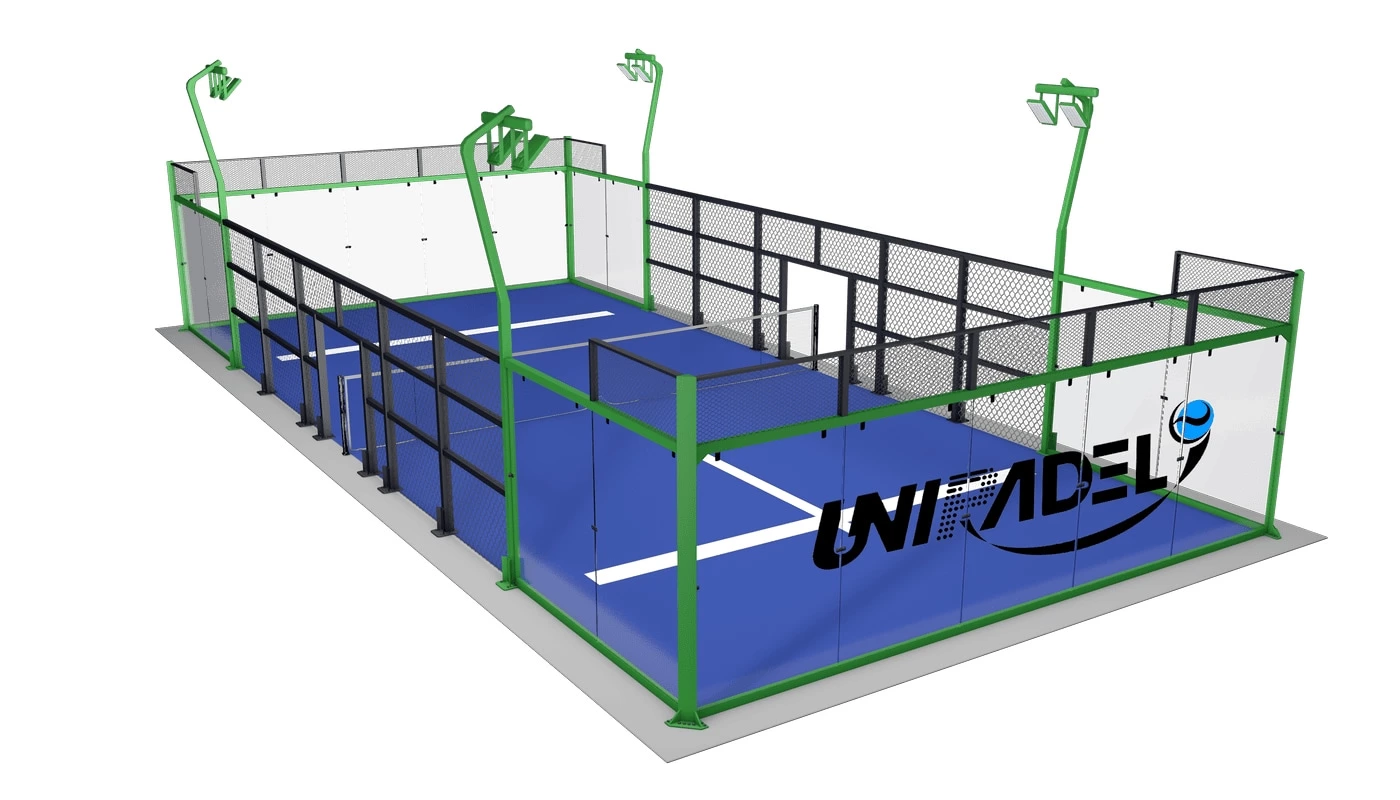

Padel Court Lighting
Working voltage: AC220V
Power: 200W
Luminous efficiency: ≥120LM/W
Power factor: ≥0.95
Lamp bead color temperature: 5700K
Color rendering index: Ra70
Light source type: SMD 3030
Protection class: IP65
Working Temperature: – 25ºC ~ +45ºC
Padel Courts Design

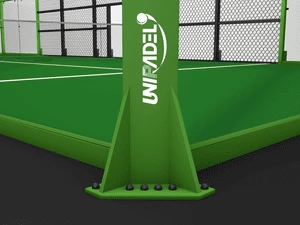

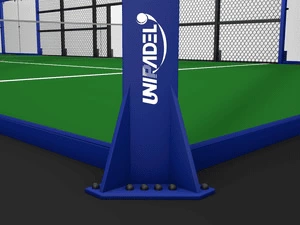

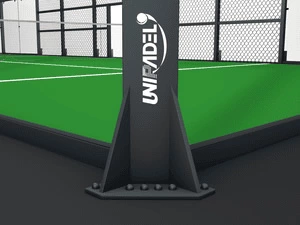

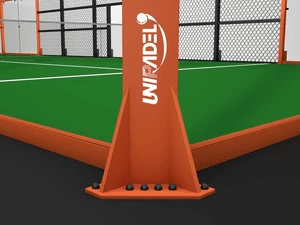

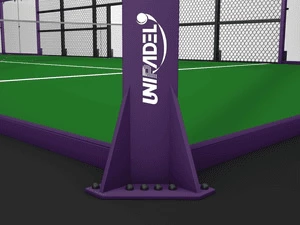

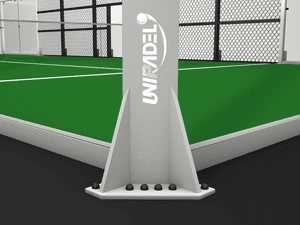

UNIPADEL provides customized padel court posts in a variety of colors to meet personalized needs for the appearance of the venue.
The black frame is stable and elegant, suitable for high-end venue design; the blue frame is full of vitality and brings a sense of freshness; the orange frame is bright and enthusiastic, suitable for fashionable style venues; the white frame is simple and elegant, highlighting the high-end atmosphere; the green frame is natural and environmentally friendly, blending in with the environment; the purple frame is mysterious and unique, increasing the visual appeal of the venue.
In addition to the above, customers can also choose other custom colors according to their brand or personal preferences. The choice of frame color is usually combined with the lawn color to ensure the best overall visual effect.
Padel Turf Artificial Grass
UNIPADEL curly textured padel turf is the most popular choice on the current market and is widely used in the World Padel Tour (WPT) and many professional competitions. The characteristic of this artificial turf is that the fibers on its surface are specially designed to form a unique texture and pattern in a curled or twisted way, which provides athletes with better grip and traction and enhances the realism of the game.
Curly padel turf not only improves sports performance, but also creates a more comfortable game experience for players. In addition, the turf can be made of a variety of synthetic fiber materials, and the performance and durability of each material varies from manufacturer to manufacturer, which makes different types of turf show obvious differences when used. We are committed to using high-quality raw materials to ensure that we provide top-quality products for high-level competitions and professional padel players to meet their strict requirements for quality and performance.
Whether on the training ground or in competition, UNIPADEL curly turf will become a reliable partner for athletes' performance, making every game full of passion and challenge.
