Super Panoramic Padel Court

Introduction

Indoor courts and competition venues generally use super panoramic padel courts. This design enables 360-degree viewing of the game without blind spots, greatly improving the viewing and interactivity of the event. Super panoramic padel courts are suitable for all forms of competitions and training, and can provide an ideal environment for both amateur players' recreational events and professional players' competitive events. With full glass walls all around, spectators can watch the game clearly from any angle, enhancing their sense of participation and experience. In addition, the super panoramic design not only provides good visual effects, but also creates a more open and inclusive atmosphere in space, making the court a real social and competitive venue.

In terms of ground materials, super panoramic padel courts usually use high-quality artificial turf to ensure that athletes get the best sports experience and safety during the game. This turf design not only has good durability, but also effectively reduces the risk of injury to athletes and provides a comfortable touch. At the same time, in order to meet the needs of night games, super panoramic padel courts are usually equipped with modern lighting systems to ensure high-quality games under any lighting conditions. These lighting systems use energy-saving LED lamps to evenly illuminate the entire venue and provide the best visual effects for athletes and spectators. In short, the super panoramic padel court has become an important venue for modern

Structure Technical Details

Padel Court Dimensions

The standard super panoramic padel court size is 10 meters wide and 20 meters long, with a rectangular layout. This compact size provides an efficient and tight space for competition, suitable for doubles competitions

Galvanized Steel Mesh

Material: Hot Galvanized Steel Grade: Q235B

Frame column size:50mm*30mm*2mm(c)

Mesh hole size:50mm*50mm*4mm

Mesh size : 1x2m/Piece

Surface treatment:Powder coating

Galvanized Steel Post

Material: Hot Galvanized Steel Grade: Q235B

Column&Gate Post:80mm'60mm*3mm Length:3m

Hot Galvanized Steel Grade: Q235B

Steel Mesh :50mm*30mm*2mm

Crossbar:150*50*3mm

Light Arm : 50*50*3mm,H3M"

Padel Court Tempered Glass

Thickness: 12mm

Light Transmission(TL %): 87%

Outdoor Reflection (RLe%):7.9%

Glass size: 1990mm*3000mm */pieces

Package: Wood Carton

Finish: Hole drilled"

Padel Turf

Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model

Pile height: 12mm

Yarn Dtex: 9500 Dtex

Backing: Latex PP+Net+Sbrwith white marking line together

Warranty: 8 years for outdoors

Color:Blue,Light Blue、Green、Purple 、Pink or customized

Certificate:CE, SGS, ROHS, REACH"

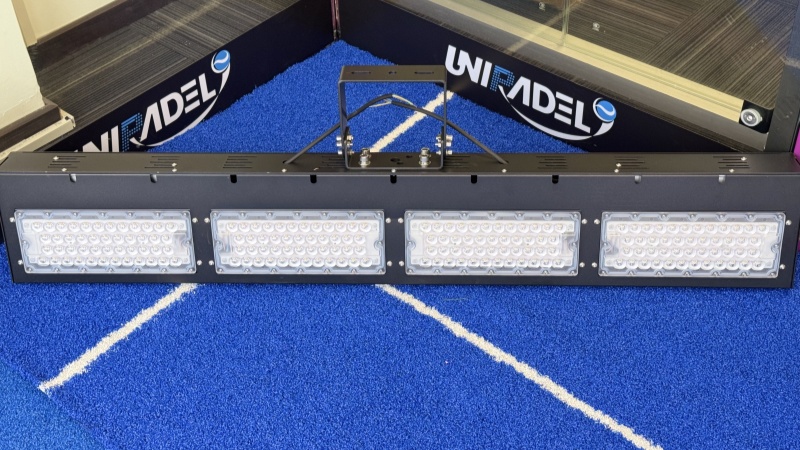

Padel Court Lighting

Working voltage: AC220V

Power: 200W

Luminous efficiency: ≥120LM/W

Power factor: ≥0.95

Lamp bead color temperature: 5700K

Color rendering index: Ra70

Light source type: SMD 3030

Protection class: IP65

Working Temperature: – 25ºC ~ +45ºC

Padel Courts Design

UNIPADEL provides customized padel court posts in a variety of colors to meet personalized needs for the appearance of the venue.

The black frame is stable and elegant, suitable for high-end venue design; the blue frame is full of vitality and brings a sense of freshness; the orange frame is bright and enthusiastic, suitable for fashionable style venues; the white frame is simple and elegant, highlighting the high-end atmosphere; the green frame is natural and environmentally friendly, blending in with the environment; the purple frame is mysterious and unique, increasing the visual appeal of the venue.

In addition to the above, customers can also choose other custom colors according to their brand or personal preferences. The choice of frame color is usually combined with the lawn color to ensure the best overall visual effect.

Super Panoramic Padel Court
Super Panoramic Padel Court
Super Panoramic Padel Court
Super Panoramic Padel Court
Super Panoramic Padel Court
Super Panoramic Padel Court

Padel Turf Artificial Grass

UNIPADEL curly textured padel turf is the most popular choice on the current market and is widely used in the World Padel Tour (WPT) and many professional competitions. The characteristic of this artificial turf is that the fibers on its surface are specially designed to form a unique texture and pattern in a curled or twisted way, which provides athletes with better grip and traction and enhances the realism of the game.

Curly padel turf not only improves sports performance, but also creates a more comfortable game experience for players. In addition, the turf can be made of a variety of synthetic fiber materials, and the performance and durability of each material varies from manufacturer to manufacturer, which makes different types of turf show obvious differences when used. We are committed to using high-quality raw materials to ensure that we provide top-quality products for high-level competitions and professional padel players to meet their strict requirements for quality and performance.

Whether on the training ground or in competition, UNIPADEL curly turf will become a reliable partner for athletes' performance, making every game full of passion and challenge.

blue
Blue
green
Green
red
Red
