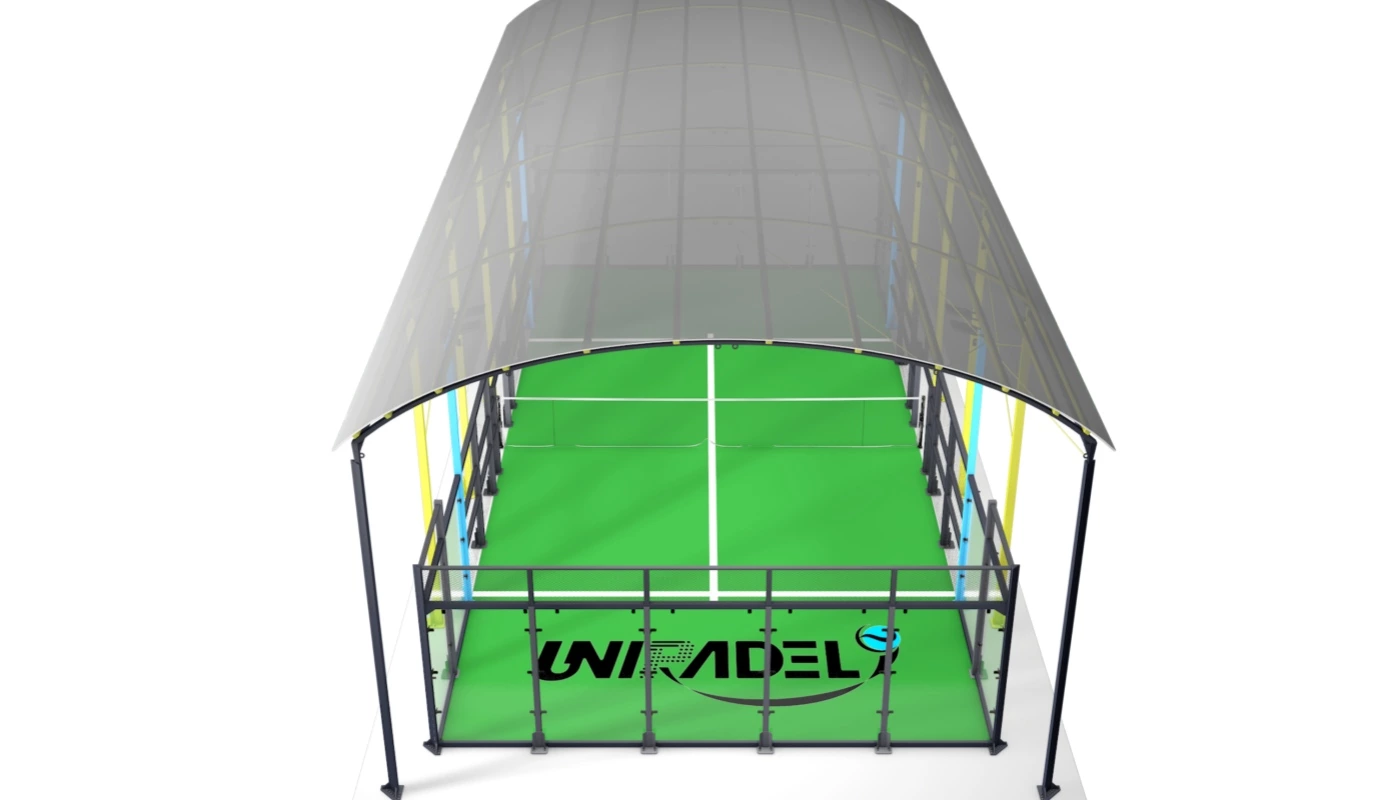

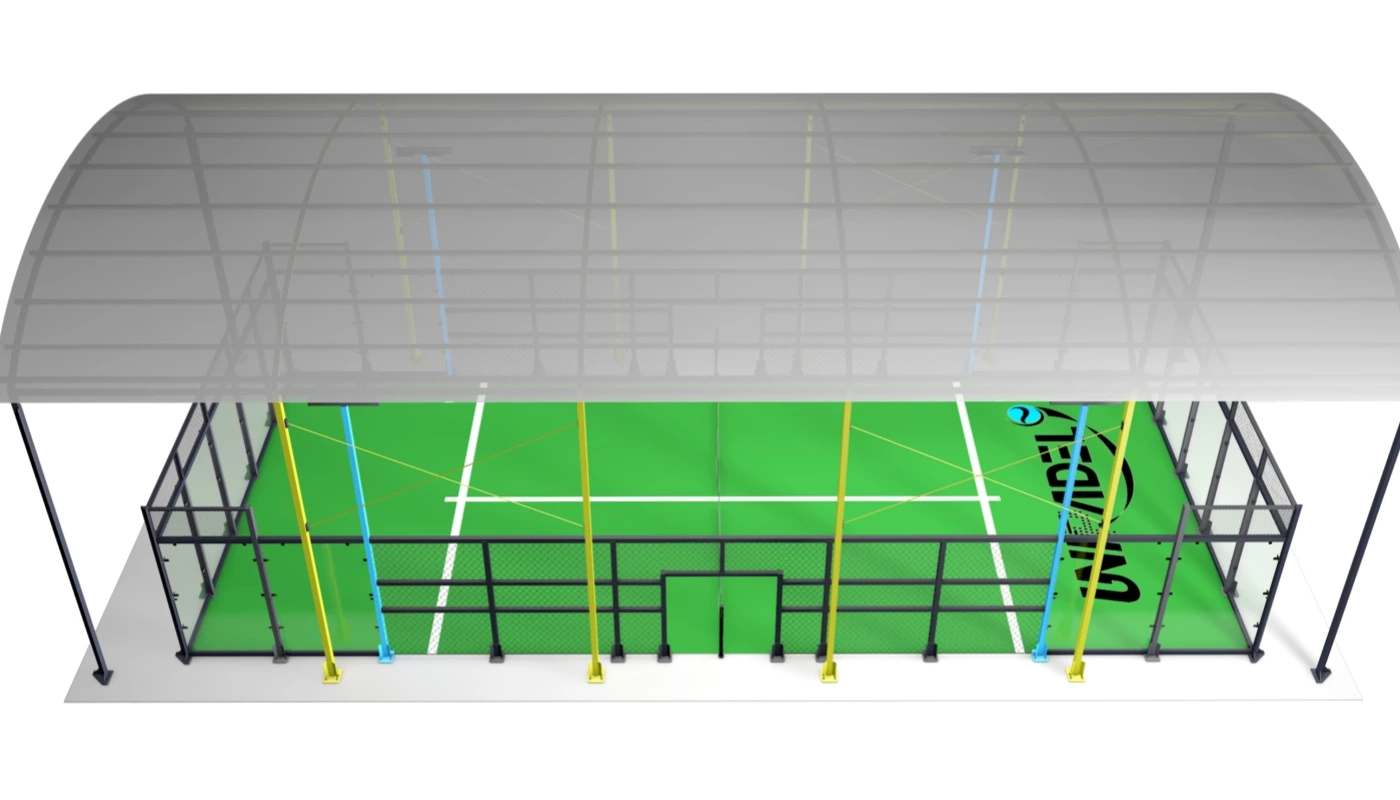

Classic Padel Court with Roof

Introduction

Classic Padel Court with Roof is an ideal choice for players and spectators with its all-weather capabilities and traditional aesthetics. Its roof design ensures that the court can be used in all weather conditions, whether it is a sunny day or a sudden rain, athletes can play or train in a stable environment. This design not only extends the use time of the court, but also effectively protects the venue from the influence of external weather, ensuring the long-term good condition of the lawn and field structure. In addition, the efficient lighting system can also provide high-quality light at night or on rainy days, which provides a guarantee for the progress of the event and improves the safety and comfort of the game.

This court design is suitable for the various needs of community facilities and professional arenas. The classic padel tennis court with roof not only meets the needs of customers for competition or training, but also provides an excellent visual experience and atmosphere. Its wall structure further enhances the protection of the game, allowing athletes to play at their best in a safe environment. Whether amateurs or professional athletes, they can enjoy a high-quality sports experience in such a venue. In general, the classic padel tennis court with roof provides an ideal solution for various sports activities with its unique style and practicality.

Structure Technical Details

Classic Padel Court with Roof

Padel Court Dimensions

The standard classic padel court with roof size is 10 meters wide and 20 meters long, with a rectangular layout. This compact size provides an efficient and tight space for competition, suitable for doubles competitions

Galvanized Steel Mesh

Material: Hot Galvanized Steel Grade: Q235B

Frame column size:50mm*30mm*2mm(c)

Surface treatment:Powder coating

Mesh hole size: 50mm*50mm*4mm

Mesh size : 1x2m/Piece

Galvanized Steel Post

Material: Hot Galvanized Steel Grade: Q235B

Column&Gate Post:80mm*60mm*3mm Length 3m

Steel Mesh :50mm*30mm*2mm

Crossbar: 150*50*3mm

Light Arm : 50*50*3mm,H3M"

Padel Court Tempered Glass

Thickness: 12mm

Light Transmission(TL %): 87%

Outdoor Reflection (RLe%):7.9%

Glass size: 1990mm*3000mm */pieces

Package: Wood Carton

Finish: Hole drilled"

Padel Turf

Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model

Pile height: 12mm

Yarn Dtex: 9500 Dtex

Backing: Latex PP+Net+Sbrwith white marking line together

Warranty: 8 years for outdoors

Color:Blue,Light Blue、Green、Purple 、Pink or customized

Certificate:CE, SGS, ROHS, REACH"

Padel Court Roof/Tent

The arched main beam is made of aluminum alloy profiles150*80*4.0mm thick,the crossbar is made ofaluminum profiles 50*50*2.$mm,the column is made ofaluminum profiles150*80*4.0mm thick,and the tarpaulin is made of PVC material 0.6mm thickSide height 6m, center height 8m.

Frame Structure: Aluminum alloy profiles

Main Profile Size: 204*120*4mm

Base size: 450*450mm

Cover: 850g/m*PVC

Temperature resistance (C):-30~70

Wind resistance: wind strength <10

Sidewall Height :3M fixed

Eave Height: 6M , Ridge Height:8M

Padel Court Lighting

Working voltage: AC220V

Power: 200W

Luminous efficiency: ≥120LM/W

Power factor: ≥0.95

Lamp bead color temperature: 5700K

Color rendering index: Ra70

Light source type: SMD 3030

Protection class: IP65

Working Temperature: – 25ºC ~ +45ºC

Padel Courts Design

UNIPADEL provides customized padel court posts in a variety of colors to meet personalized needs for the appearance of the venue.

The black frame is stable and elegant, suitable for high-end venue design; the blue frame is full of vitality and brings a sense of freshness; the orange frame is bright and enthusiastic, suitable for fashionable style venues; the white frame is simple and elegant, highlighting the high-end atmosphere; the green frame is natural and environmentally friendly, blending in with the environment; the purple frame is mysterious and unique, increasing the visual appeal of the venue.

In addition to the above, customers can also choose other custom colors according to their brand or personal preferences. The choice of frame color is usually combined with the lawn color to ensure the best overall visual effect.

Classic Padel Court with Roof
Classic Padel Court with Roof
Classic Padel Court with Roof
Classic Padel Court with Roof
Classic Padel Court with Roof
Classic Padel Court with Roof

Padel Turf Artificial Grass

UNIPADEL curly textured padel turf is the most popular choice on the current market and is widely used in the World Padel Tour (WPT) and many professional competitions. The characteristic of this artificial turf is that the fibers on its surface are specially designed to form a unique texture and pattern in a curled or twisted way, which provides athletes with better grip and traction and enhances the realism of the game.

Curly padel turf not only improves sports performance, but also creates a more comfortable game experience for players. In addition, the turf can be made of a variety of synthetic fiber materials, and the performance and durability of each material varies from manufacturer to manufacturer, which makes different types of turf show obvious differences when used. We are committed to using high-quality raw materials to ensure that we provide top-quality products for high-level competitions and professional padel players to meet their strict requirements for quality and performance.

Whether on the training ground or in competition, UNIPADEL curly turf will become a reliable partner for athletes' performance, making every game full of passion and challenge.

blue
Blue
green
Green
red
Red
